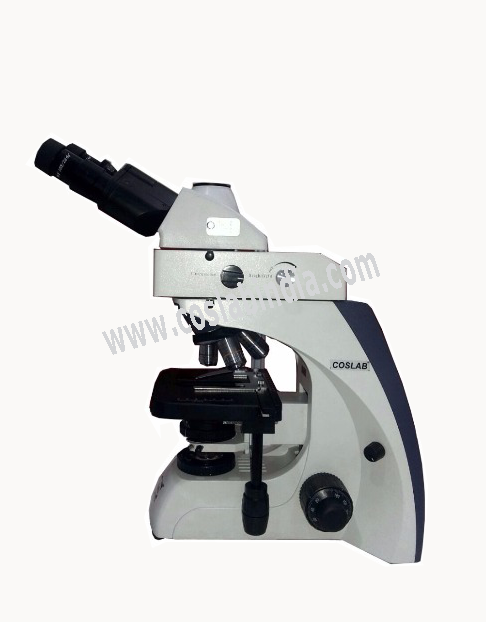

HL-32 WITH FLM-303 LED

Optical System

Universal Infinite Optical System

Viewing Head

Siedentopf Binocular Viewing Head, Inclined At 30°
Interpupillary 48mnn-75mm

Eyepiece

Wide Field Eyepiece WF10X/F.N.22mm

Nosepiece

Backward Quadruple Nosepiece above with Filter Slot

Objectives

Infinite High Contrast Plan or Semi Plan Achromatic
Objectives 4x, 10x, 40x, 100x

Condenser

N.A1.25 Kohler Illumination Condenser with Diaphragm

Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm.

Stage

Double Layer Mechanical Stage 179X158mm, Moving

Range 79mmX5Omm, Double Slide Holder

Illumination

Transmitted: Kohler Illumination High Brightness
Adjustable 3W LED & Chord Rest on Back with Hand Space for Carrying Microscope Comfortably.

Reflected :Epi-Fluorescent Illumination LED 3V/SW, AC85V- 230V,Brightness adjustable

Fluorescent Attachment

Blue Filter B Wave Band

Optional Accessories

Green Filter, UV Filter, V Filter, Siedentopf Trinocular Viewing Head,   Ceramic Coated Stage, Quintuple  Nosepiece,  Dark  Field  or  Phase  Contrast Attachment,  Polarization  Attachment, Digital Camera, USB CMOS Camera, LCD Screen & HDMI Cameras, Image Analysis Software , Battery Backup etc
