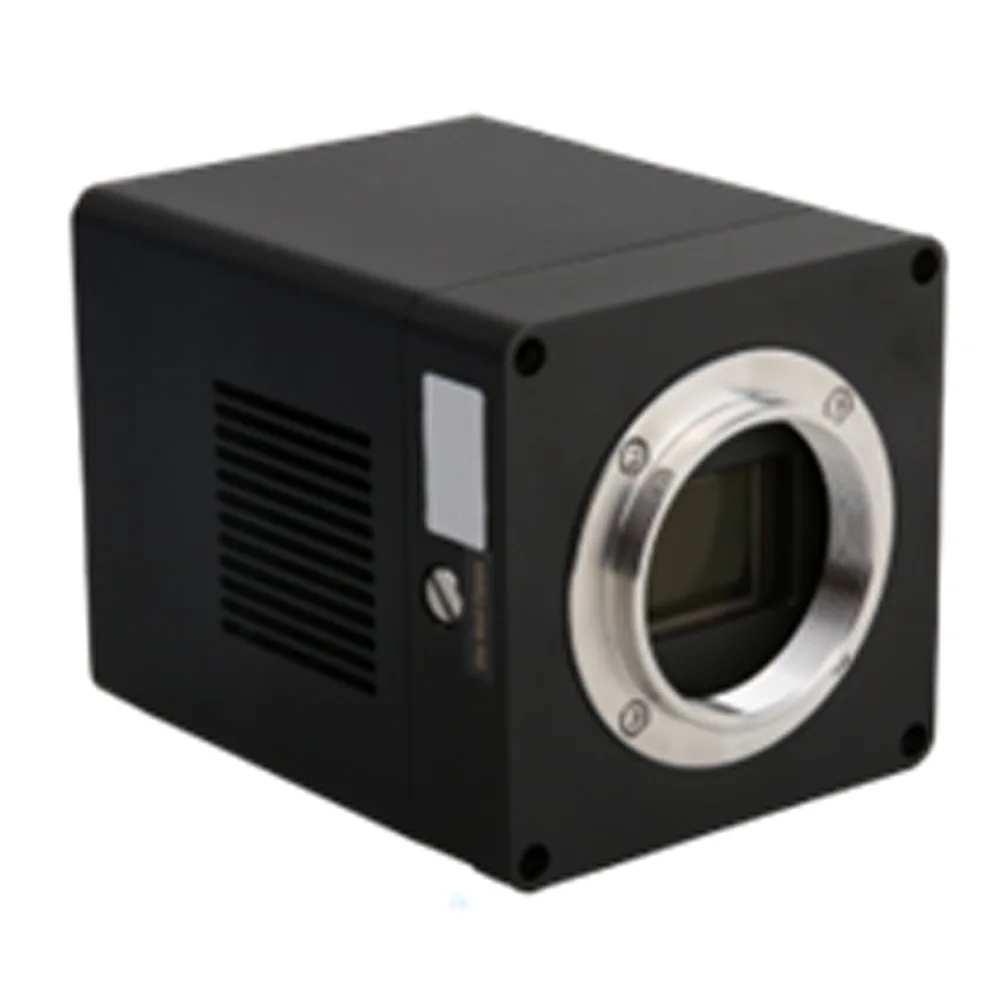

DIGITAL CMOS COOLED CAMERA 20 M.P. (USB 3.0)
MODEL: COSUSB3020
CMOS Basic Characteristic: The COSUSB3020 can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
FEATURES:-
- Standard C-Mount camera;
- USB3.0 5 Gbps interface ensuring high frame rates;
- Integrated multi-channel color separation optics (model dependent): separates different wavelength/color channels and acquires them synchronously, suitable for multi-color fluorescence/multi-band applications
- Multi-channel synchronization: supports external hardware triggering and inter-channel timing coordination, reducing sequential switching errors and motion artifacts.
- High-sensitivity low-noise CMOS sensors (model dependent), suitable for low-light and long-duration observation.
-
Independent parameters per channel: exposure/gain/ROI/bit depth can be set separately, facilitating optimization according to spectral lines and brightness differences
-
Acquisition modes: free-running, software trigger, external hardware trigger; supports multi-device/light source/motion platform timing coordination
-
Ultra-Fine image processing: demosaicing, AE/AGC, AWB/one-click white balance, color correction, Gamma, contrast/brightness/saturation, LUT, etc. (model dependent)
-
Supports 8/12-bit depth output with TBD dynamic range, preserving more image details.
-
Adjustable cooling temperature allows users to balance low noise with quantum efficiency according to requirements, optimizing imaging performance.
| Order Code | Sensor & Size(mm | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution |
|
COSUSB3020 DATASHEET |
IMX183 (C, RS) 13.056 mm × 8.755 mm |
2.4 × 2.4 | 462 mV (1/30s), 0.21 mV dark current |
19 fps@5440×3648; 48.8 fps@2736×1824; 59.4 fps@1824×1216 |
Other Specification for Camera
| Capture/Control SDK | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Ultra-Long Exposure Time | Maximum exposure time up to 1 hour , supporting long integration imaging for extremely weak signal detection. |
| Deep Cooling System* | Dual-stage semiconductor deep cooling, 42 °C below ambient temperature , effectively reducing dark current and thermal noise with typical dark current of 0.07 mV @ -20 °C . |
Operating Environment
| Operating Temperature(in Centidegree) | -10 °C ~ +50 °C |
| Storage Temperature(in Centidegree) | -20 °C ~ +60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | USB3.0 interface power + external DC12V 3A cooling power supply |
Software Environment
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
