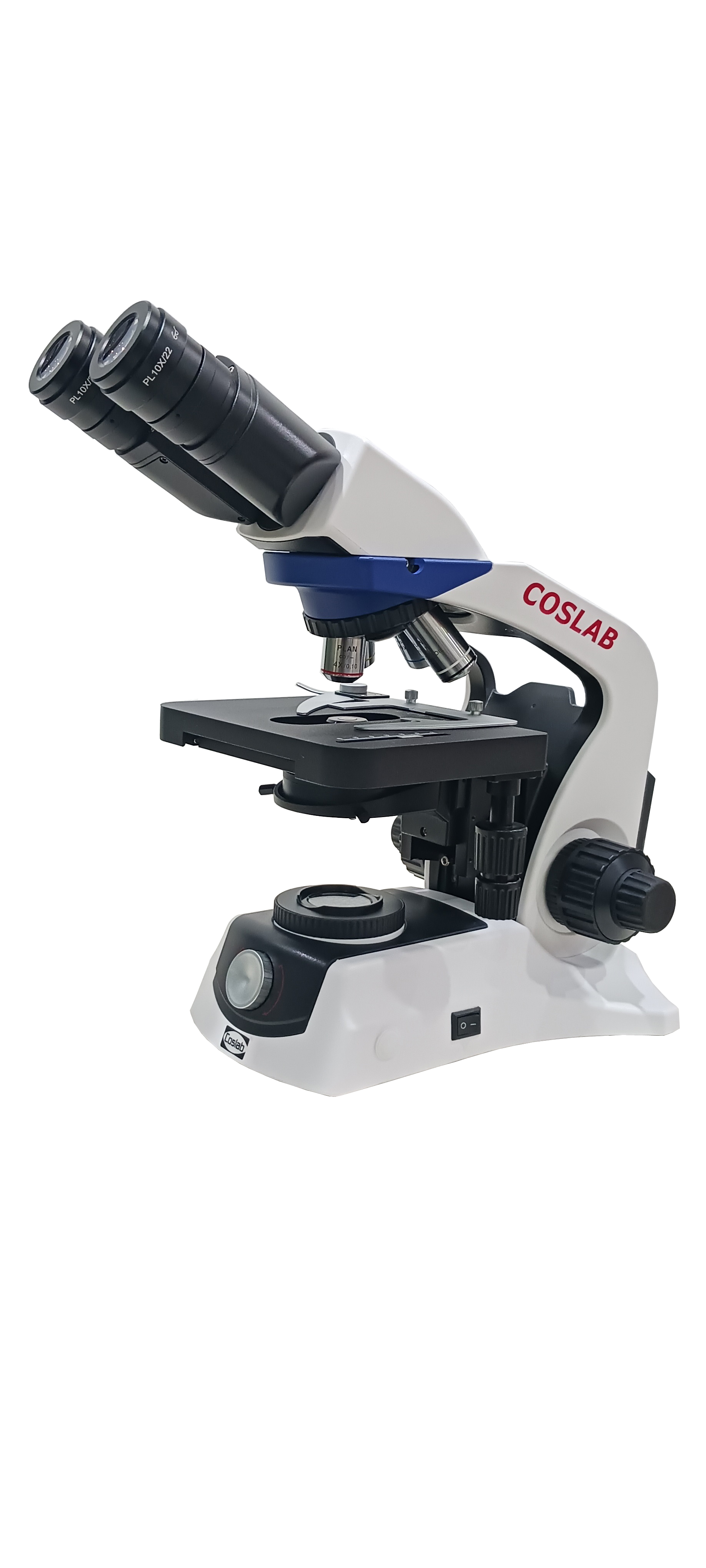

COAXIAL RESEARCH MICROSCOPE-HL-33 LED

Optical System

Universal Infinite Optical System

Body

Ergonomic design sturdy body with window arm to view objectives from both sides Chord Holder on Back with Hand Space for Carrying Microscope Comfortabely

Viewing Head

Siedentopf Binocular Viewing Head, Inclined at 30° Interpupillary Distance 48mm-75mm

Eyepiece

Wide Field Eyepiece WF10X/ F.N.22mm

Nosepiece

Backward Quarduple/Quintuple Nosepiece

Objectives

Infinite High Contrast Plan or Semi Plan Achromatic Objectives 4x, 10x, 40x, 100x

Condenser

N.A1.25 Kohler Illumination Condenser with Diaphragm

Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm

Stage

Double Layer Mechanical Stage 175X145mm, Moving Range 90mmX60mm, Double Slide Holder

Illumination

Kohler Illumination High Brightness Adjustable 3W LED

Optional Accessories

(On Extra Cost)

Siedentopf Trinocular Viewing Head,  Ceramic Coated Stage, Rackless Mechanical Stage, Dark Field or Phase Contrast Attachment,  LED Fluorescent Attachment, Digital Camera, USB CMOS Camera, LCD Screen & HDMI Cameras etc.,  Polarisation Attachment, Battery Backup etc.
