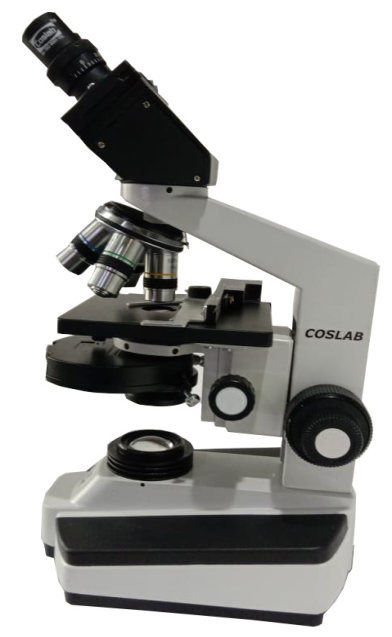

HL-12 BINOCULAR MICROSCOPE

Viewing Head:

Binocular Head 30° Inclined, 360? Rotating, Inter-pupillary distance 50– 75mm

Eyepiece:

W.F 10x, 20mm with diopter adjustments and Centering Telescopic Eyepiece

Objective lenses:

Phase contrast plan achromatic 10x/0.25 PHP

Phase contrast plan achromatic 20x/0.40 PHP (Spring)

Phase contrast plan achromatic 40x/0.65 PHP (Spring)

Phase contrast plan achromatic 100x/1.25 PHP (Spring, oil)

Magnification range:

100X~1000X

Mechanical Stage:

Double layers mechanical stage 140mmx140mm

Traveling range: 75 mm × 50 mm

Focusing Range:

Coaxial coarse and fine focusing tension control

Illumination:

LED Illumination

Condenser:

Center able condenser with adjustable aperture diaphragm suitable for bright field and phase contrast

Light Source:

Continuous intensity control of light source

Filter:

Blue filter, Frosted Filter

Power supply:

220 V ± 10 %, 50/60 Hz

Components, spare parts, consumables:

Dust cover

lens cleaning cloth

Optional (On Extra Cost):

LED Fluorescence Attachment
